Detalhes do produto:
|
| Cor e página: | MULTICOLORIDO | Uso: | Campo de publicidade interna e externa |
|---|---|---|---|
| OS compatível: | Windows 7 e Windows 10 | Software: | ÔNIX |
| Poder do aquecedor: | 6kw | Grau automático: | Automático |
| Tensão: | AC100-120V/AC220-240V | Tipo de tecido adequado: | Algodão tricotado ou tecido, linho, seda, lã, fibra química, nylon.oxford etc |
| Processamento de mídia: | Rolar para rolar + alimentação automática + rolagem automática | Tipo de tinta: | Tinta de sublimação, tinta de pigmento |
| Product Parameter | |

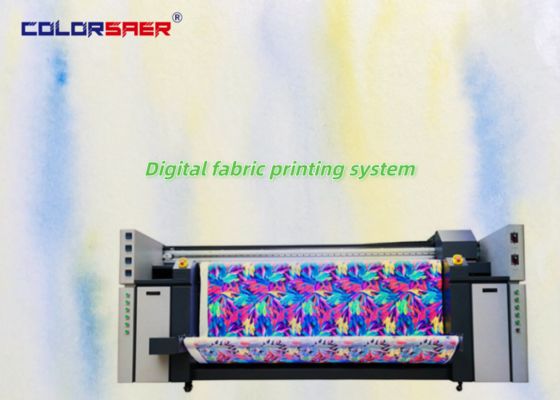

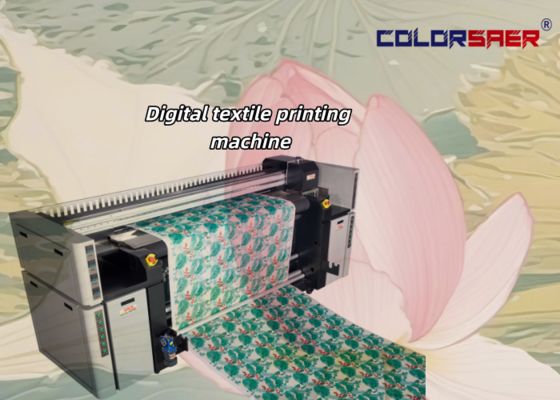

| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
| Printing resolution and speed | Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h | |
X axis and Y axis are using AC servo motors.
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
