Detalhes do produto:
|
| Poder do aquecedor: | 6kw | Nota automática: | Automático |
|---|---|---|---|
| Tensão: | AC100-120V/AC220-240V | Tipo de tecido adequado: | Algodão tricotado ou tecido, linho, seda, lã, fibra química, nylon.oxford etc |
| Processamento de mídia: | Rolar para rolar + alimentação automática + rolagem automática | Tipo de tinta: | Tinta de sublimação, tinta de pigmento |
| Cor e página: | MULTICOLORIDO | Uso: | Campo de publicidade interna e externa |
| OS compatível: | Windows 7 e Windows 10 | Software: | ÔNIX |

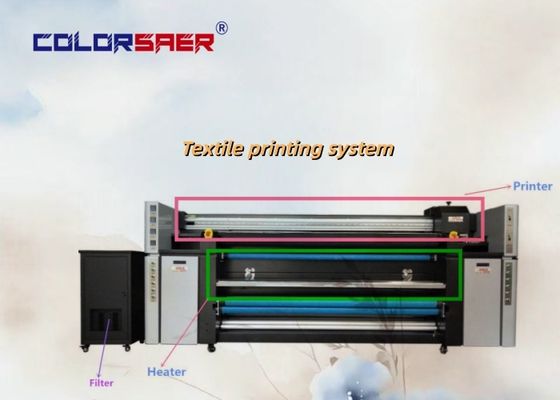

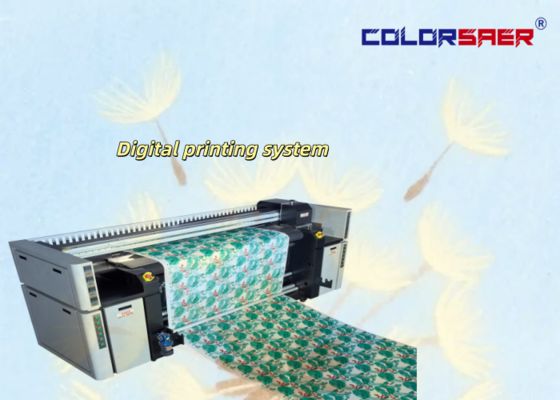

Product name:Large Format Plotter Sublimation Printer 4pcs I3200 Heads for Polyester & Cotton Fabric Printing Machine
Machine working speed :
Machine Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Main Features :
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Advantages:
Application industry:
